IMPULSE LOADING

I will discuss the role of impulse loading, in the perspective of phases of a turn cycle, in creating a platform under the body of the outside ski on which a skier can stand and balance on.

The Phases of a Ski Turn Cycle

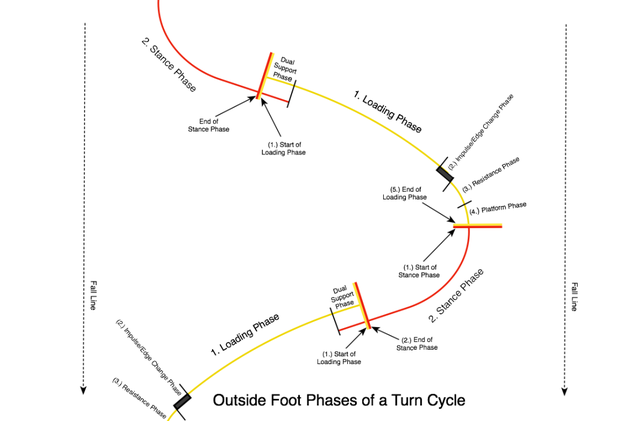

In order to appreciate the dynamics of impulse loading in skiing, I have modelled the phases of a turn cycle into 2 main phases with associated sub phases. The graphic below shows the Loading (1 – yellow) and Stance (2 – red) Phases of the outside (left) foot in a turn cycle with sub phases. The actual turn phase starts at the juncture of the traverse and from fall line and ends when the skier starts to extend the inside (right) knee. I will discuss the turn cycle in detail in a future post. My long-held theory, which was partially validated with the 1991 Birdcage studies, is that ski movements should employ the same hard-wired patterns as walking and running and that skiing should as instinctive and transparent.

turn-cycle1

impulse-2


Peak Force and impulse loading occurs at ski flat between edge change (red circle). This is what I refer to as the Moment of Truth. Moment, in this context, being a moment of force or torque. The manner in which the torque acts in the sequence of events surrounding edge change determines whether GRF is cantilevered under the base of the ski or whether it acts to rotate the ski (invert) it out of the turn.
